EOTECH FDE Vudu 1-10X28mm MRAD Reticle VDU1-10SR5DFTAN
EOTECH Vudu® Characteristics
EOTECH FDE Vudu 1-10X28mm MRAD Reticle VDU1-10SR5DFTAN
Technical Specifications
Overview
EOTECH’s Vudu 1-10×28 offers a robust 34mm, one-piece aircraft aluminum tube and single-piece eyepiece that includes a removable throw-lever for fast changes in magnification. The low profile elevation turret includes a push/pull locking system and a capped windage turret for a secure zero. The illuminated, glass-etched reticle and first focal plane design allows for distance estimation at any magnification and lighting condition.
Included in the box:
- Vudu® 1-10X28 Rifle Scope
- Operator Manual
- Reticle Manual
- Throw Lever
- Lens Cleaning Cloth
Operator Manuals:
- Vudu 1-10X28 Manual
- SR4, SR5 & LE5 Reticle Manual
First Focal Plane
Overall Length
10.63″ (270 mm)
Weight
21.3 oz (603 g)
Magnification
1-10X
Tube Diameter
34 mm
Objective Diameter
28 mm
Power Source
CR2032
Eye Relief
1X: 3.27-3.90″ (83-99 mm)
10X: 3.35-3.62″ (85-92 mm)
Field-of-View @ 100 Yards
1X: 116.6 ft (35.5 m)
10X: 11.7 ft (3.6 m)
Country of Origin
Made in Japan
EOTECH FDE Vudu 1-10X28mm MRAD Reticle VDU1-10SR5DFTAN
Reticle Specifications
Vudu SR-4 MOA Reticle
The SR-4 incorporates the iconic EOTECH illuminated speed ring along with a hashmarked inner crosshair reticle that uses MOA subtension lines for ranging holdover and wind compensation. With a 1MOA center aiming dot, the clean sight picture provides improved down range visibility while still allowing the full use of the horizontal and vertical stadia lines for hold-overs and wind calls.
Adjustment Graduation Per Click
0.25 MOA
Adjustment Graduation Per Rotation
40 MOA
Total Elevation Travel
100 MOA
Total Windage Travel
80 MOA

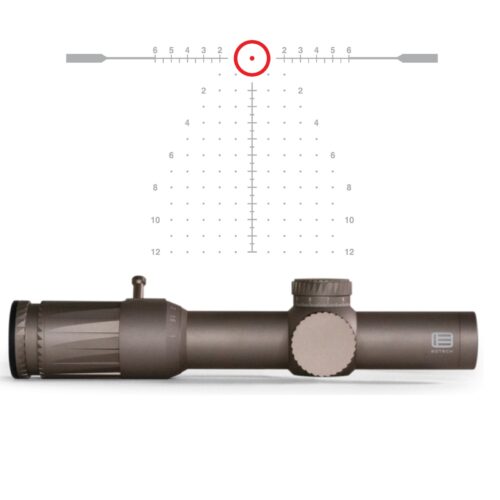

Vudu SR-5 MRAD Reticle
The SR-5 incorporates the iconic EOTECH illuminated speed ring along with a hashmarked inner crosshair reticle that uses MRAD subtension lines for ranging holdover and wind compensation. A Christmas tree style reticle offers a precision 0.25 MRAD center aiming dot and the secondary windage and elevation features allow for precise holds on those longer range shots.
Adjustment Graduation Per Click
0.1 MRAD
Adjustment Graduation Per Rotation
15 MRAD
Total Elevation Travel
29 MRAD
Total Windage Travel
23 MRAD
Vudu LE-5 MRAD Reticle
The LE-5 incorporates the iconic EOTECH illuminated speed ring along with a hashmarked inner crosshair reticle that uses MRAD subtension lines for ranging holdover and wind compensation. A Christmas tree style reticle offers a precision cross-hair and the secondary windage and elevation features allow for precise holds on those longer range shots.
Adjustment Graduation Per Click
0.1 MRAD
Adjustment Graduation Per Rotation
15 MRAD
Total Elevation Travel
29 MRAD
Total Windage Travel
23 MRAD
EOTECH FDE Vudu 1-10X28mm MRAD Reticle VDU1-10SR5DFTAN
Restrictions& Considerations
Before Making A Purchase:
Please note that ALL SALES OF SIGHTS ARE FINAL. No returns or exchanges on sights will be accepted. If purchased item arrives damaged or defective, please contact EOTECH Technical Support to obtain a RMA number.
Export Restrictions:
Export of this product is strictly controlled and enforced by the U.S. Department of Commerce, Bureau of Industry and Security, as prescribed in the Export Administration Regulation (EAR), Title 15, Code of Federal Regulations, Parts 730-774. EOTECH, LLC does not authorize any of its dealers or distributors to export this commodity without prior, written authorization, and will not provide warranty or post-sales support of unauthorized international exports.
Prop 65 Warnings:
This product can expose you to chemicals including (Epichlorohydrin, Phenyl, Hydrazine or Cumene) which are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
