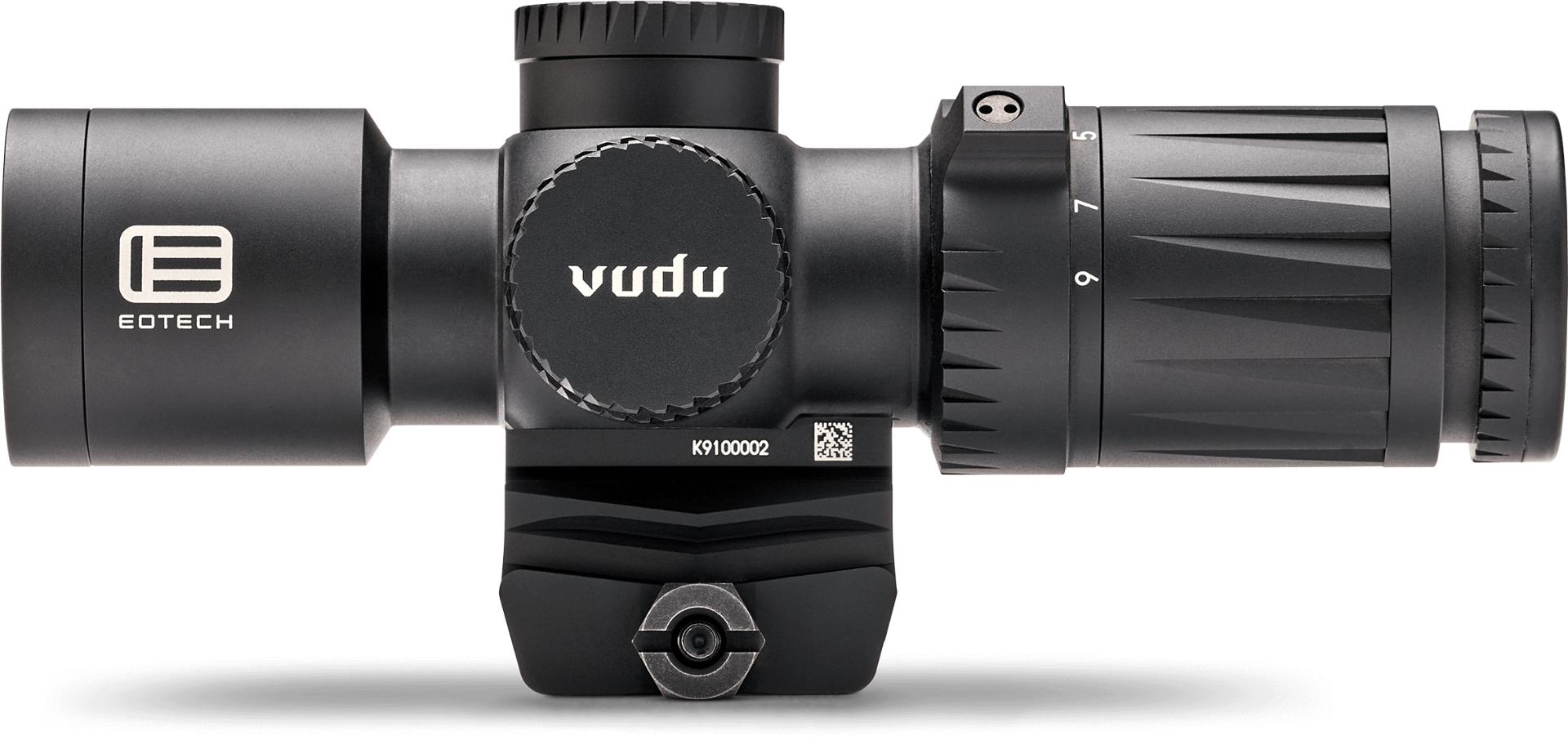

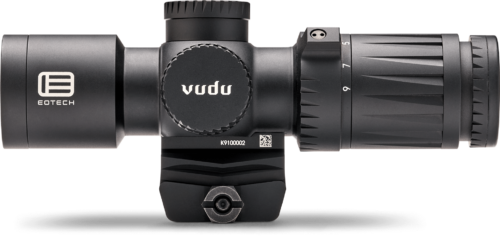

EOTECH Vudu 3-9X32mm HC-1 VDU3-9SFHC1
Vudu 3-9×32 Riflescope Only
The super short Vudu® 3-9×32 riflescope might just be the perfect optic. The housing is constructed of aircraft-grade aluminum to be compact, lightweight and incredibly durable. This second focal plane design comes in at 6.8” and is fog, water, and shock resistant. The turrets offer ¼ MOA adjustments and are both capped for protection. A rotary dial provides an illuminated reticle with 10 brightness settings and the CR2032 battery provides roughly 300 hours of operation. The unique design provides an integrated base that is also compatible with any aftermarket mini-ACOG® mounts.
EOTECH Vudu 3-9X32mm HC-1 VDU3-9SFHC1 Features
Aircraft Grade
Aircraft-grade aluminum, single-piece construction with anodized finish for extreme durability. Laser-etched adjustment indicators and push-button illumination controls for tracking east. Water-resistant, fog-resistant, shock-resistant with single construction eyepiece.
Fog Resistant
Nitrogen gas purging prevents internal fogging over the operating temperature range.
Shock Resistant
The rugged design prevents damage from heavy recoil and rough handling.
Water Resistant
The single-piece tube and o-ring seals prevents moisture and dust from entering the scope even in the harshest environments.
Anti-Reflective Lenses
XC™ high-density, low dispersion glass with anti reflective coated lenses provides efficient light transmission and unmatched edge-to-edge clarity. Water-resistant, fog-resistant, shock-resistant with single construction eyepiece.
EOTECH Vudu 3-9X32mm HC-1 VDU3-9SFHC1 Technical Specifications
Overview
The super short Vudu® 3-9×32 riflescope is crafted from aircraft-grade aluminum for lightweight durability. Measuring just 6.8", it is fog, water, and shock resistant, with capped ¼ MOA turrets and a second focal plane design. An illuminated reticle with 10 brightness settings runs up to 300 hours on a CR2032 battery. Its integrated base is compatible with mini-ACOG mounts. For added versatility, a version with a ring mount and EFLX™ sight allows non-magnified targeting, mountable at the top or 45-degree angles for dynamic use.
Included in the box:
- Vudu® 3-9×32 SFP Riflescope
- Operator Manual
- Reticle Manual
- Lens Cleaning Cloth
- Battery
Operator Manuals:
Second Focal Plane
Overall Length
6.8" (172.7mm)
Height Above Bore
1.56" (39.7 mm)
Weight
16 oz (454 g)
Magnification
3-9x
Illuminated Reticle
Yes, HC1
Objective Diameter
32 mm
Power Source
CR2032
Eye Relief
3X: 2.5-3.1" (64-81 mm)
9X: 2.3-3.1" (59-79 mm)
Field-of-View @ 100 Yards
3X: 38 ft (11.6 m)
9X: 12.7 ft (3.9 m)
Country of Origin
Made in Japan
Vudu HC1 Reticle
The HC1 is a second focal plane MOA- based hashmark reticle that was designed for the precision long-range shooter. The non-illuminated crosshairs allow for elevation and windage correction, while the ultra-small center aiming dot (0.15 MOA at 32X) provides the utmost accuracy. The HC1 is an excellent choice for precision long-range shooting such as bench rest, F-class and small game dog hunting.
RETICLE SPECIFICATIONS(MOA) |
HC1 |
| ADJUSTMENT GRADUATION PER CLICK | 0.25 |
| ADJUSTMENT GRADUATION PER ROTATION | 30 |
| TOTAL ELEVATION TRAVEL | 90 |
| TOTAL WINDAGE TRAVEL | 60 |
RETICLE DIMENSIONS(MOA) |
3x | 9x |
|---|---|---|
| CENTER DOT DIAMETER | 3.60 | 1.20 |
| LINE THICKNESS | 1.20 | 0.40 |
| SPACE BETWEEN HASH MARKS | 6.00 | 2.00 |
| LENGTH OF SHORT HASH MARKS | 7.50 | 2.50 |
| LENGTH OF LONG HASH MARKS | 15.00 | 5.00 |
