INFITAC FMP13 FDE Thermal Pistol Optic FMP13_FDE
The World’s First Multi-Function Thermal Pistol/Rifle Sight.
The INFITAC Fast Mini Series includes two compact thermal pistol sights—the FML19 and FMP13—featuring 384×288 and 256×192 resolution sensors, both operating at 60 Hz. Equipped with F1.2 (19 mm) and F1.0 (13 mm) lenses respectively, both models use a 1.4-inch 360×300 display.
Built for rugged use, the Fast Mini Series is IP67 waterproof, rated for up to 1200g recoil, and powered by a CR2 battery providing up to 5 hours of runtime, all in an ultra-compact and lightweight design.
Standard RMR footprint for your pistol mounting needs.
Complete your setup — optionally purchase FAST‑MINI accessories, including additional pistol footprints (RMSc, DPP, MOS) and rifle mounts (Picatinny rail, 30 mm ring, 45° offset, Aimpoint Acro).
INNOVATION & CAPABILITIES
- Thermal Tech
- InstaWake Tech
- Touch Screen (can also operate using buttons)
- Standard RMR footprint
- 60 Hz Overlay Refresh Rate
- Multi Reticle System: 6 MOA dot,6 MOA dot &65 MOA circle, 6 MOA dot & 130 MOA circle
- Auto Brightness
| Category | INFITAC Fast Mini FMP13 | INFITAC Fast Mini FML19 |
|---|---|---|
| Sensor Resolution | 256 × 192 @ 12μm | 384 × 288 @ 12μm |
| Objective Lens | 13mm F1.0 | 19mm F1.2 |
| NETD (Thermal Sensitivity) | ≤25mK | ≤20mK |
| Battery Type | 1 × CR2 Battery | 1 × Rechargeable CR2 Battery |
| Field of View (H × V) | 13.5° × 10.1° | 13.8° × 10.3° |
| Detection Range | 740 yd (680 m) | 1,100 yd (1,000 m) |
| Recognition Range | 110 yd (100 m) | 165 yd (150 m) |
| Optical Magnification | 0.5x | 0.5x |
| Digital Zoom | 1x, 2x | 1x, 2x |
| Focus Range | 2 yd to ∞ | 2 yd to ∞ |
| Display Type | 1.4″ Display (360 × 300) | 1.4″ Display (360 × 300) |
| Viewing Window | 26 × 20 mm | 26 × 20 mm |
| Color Palettes | White Hot, Black Hot, Red Hot, Rainbow | White Hot, Black Hot, Red Hot, Rainbow |
| Refresh Rate | 60 Hz | 60 Hz |
| Water Resistance | IP67 (Submersible to 33 ft / 10 m) | IP67 (Submersible to 33 ft / 10 m) |
| Maximum Recoil Rating | 1200 g/s² | 1200 g/s² |
| Operating Temperature | -4°F to 122°F (-20°C to 50°C) | -4°F to 122°F (-20°C to 50°C) |
| Weight | ≤4 oz (113 g) | ≤4 oz (113 g) |
| Dimensions | ≤2.0 × 1.5 × 1.7 in (50 × 38 × 44 mm) | ≤2.0 × 1.5 × 1.7 in (50 × 38 × 44 mm) |
| Footprint | RMR Compatible | RMR Compatible |
| Adjustment Controls | Two-Button Control with Lockable Adjustment | Two-Button Control with Lockable Adjustment |
| Charging / Data Port | N/A | USB Type-C |
| Finish | Black | Black |
TECH FEATURES
Dual-Platform Optic
Touch Screen
InstaWake Tech
Multiple Reticle System
Auto Brightness
Thermal Tech

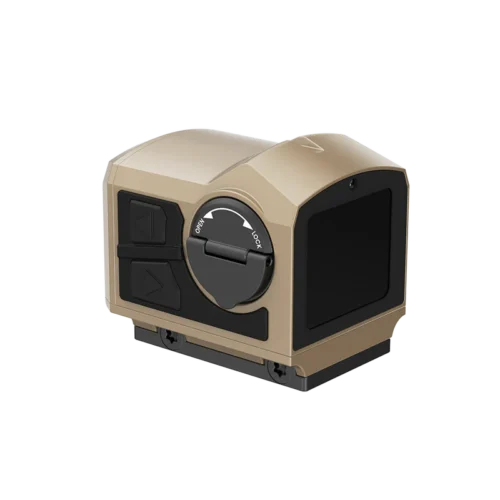

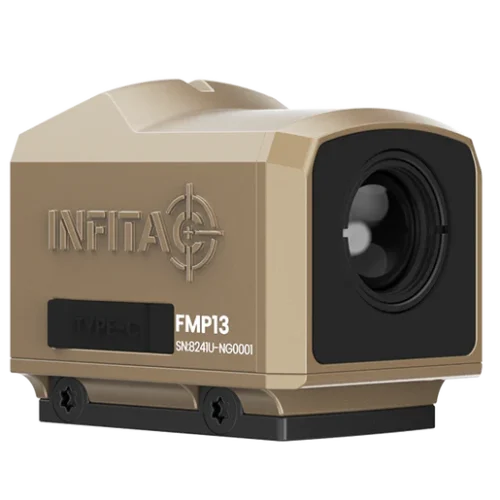

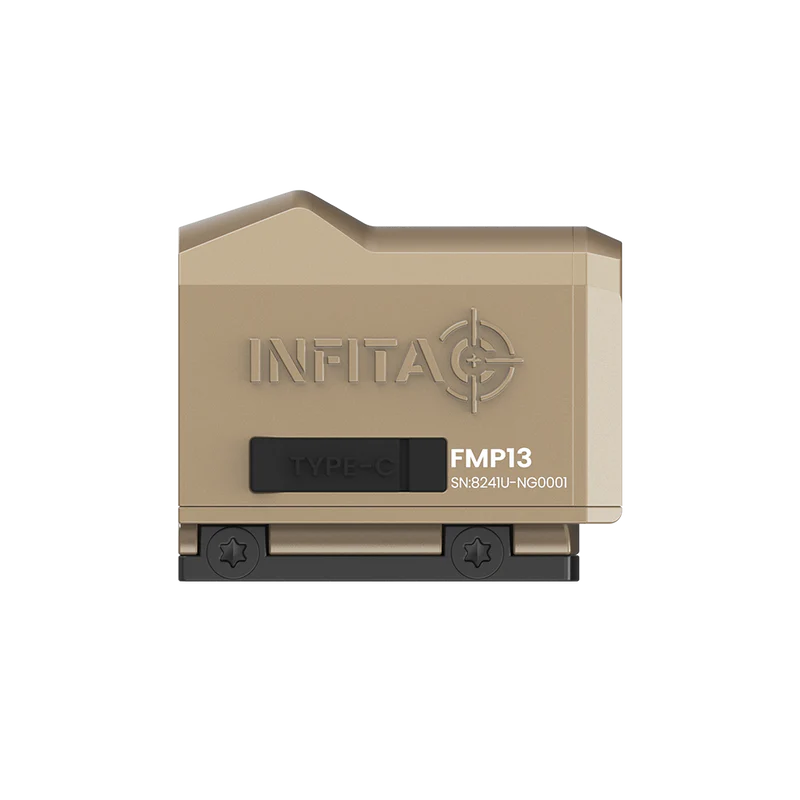

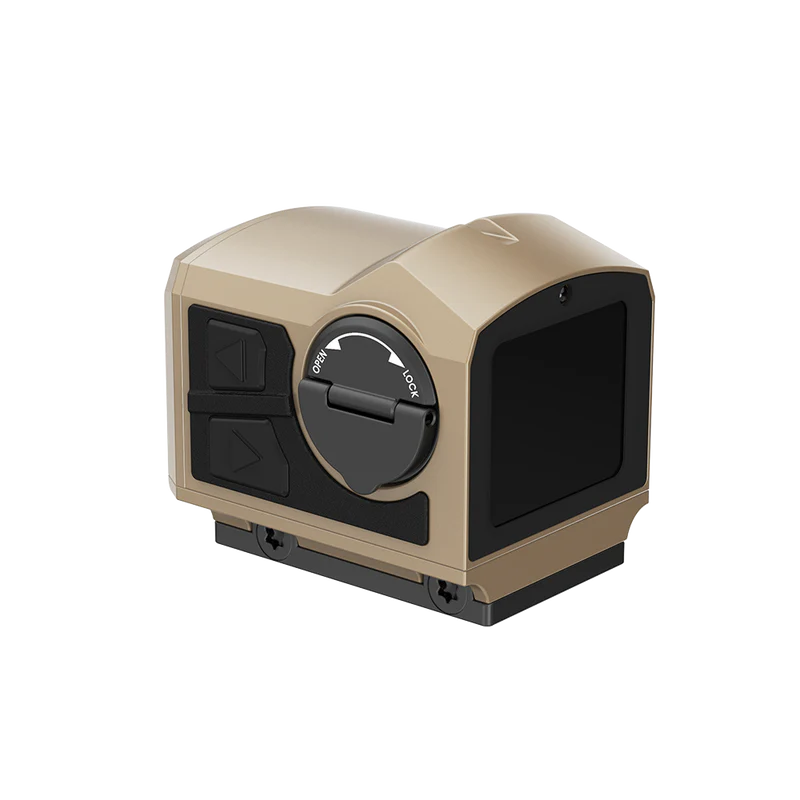

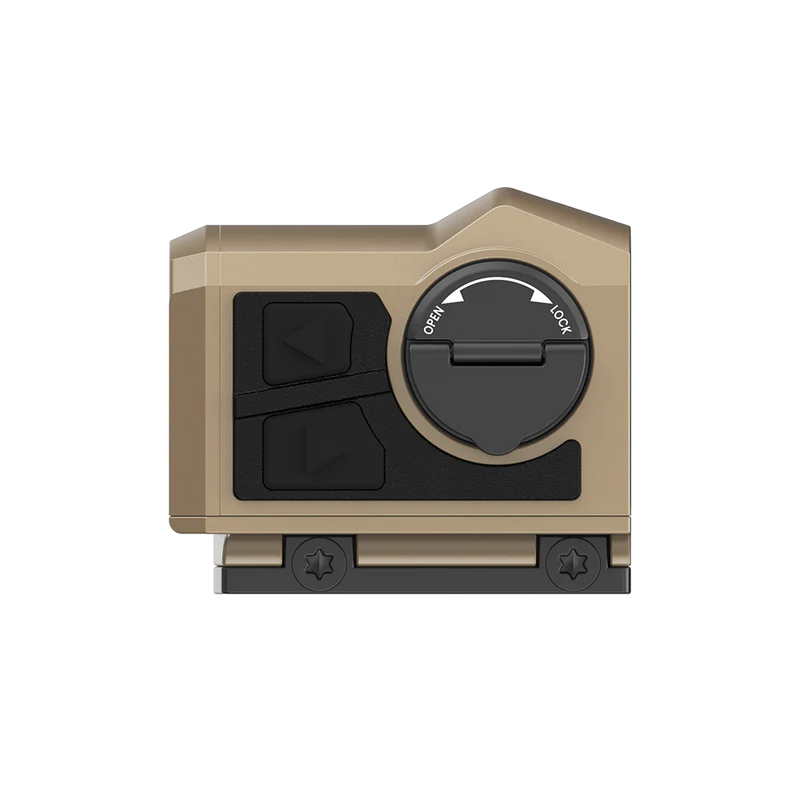

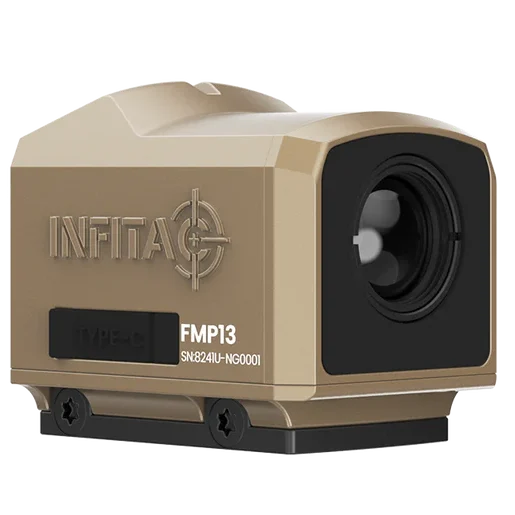

The INFITAC FMP13 FDE Thermal Pistol Optic FMP13_FDE is a compact, high-performance thermal reflex sight engineered to provide exceptional target detection in low-light, nighttime, and adverse weather conditions. Designed for shooters who demand cutting-edge thermal technology in a lightweight package, the INFITAC FMP13 FDE Thermal Pistol Optic combines a rugged Flat Dark Earth finish with advanced imaging capabilities, making it an excellent choice for tactical applications, hunting, home defense, and professional use.
At the core of the FMP13_FDE is a 256 × 192, 12μm thermal sensor with an impressive ≤25mK NETD, allowing it to detect subtle temperature differences and produce crisp thermal images even in challenging environments. Paired with a 13mm F1.0 objective lens, the optic offers a detection range of up to 740 yards (680 meters) and a recognition range of 110 yards (100 meters), giving users reliable thermal performance for close- to mid-range engagements.
The INFITAC FMP13 FDE Thermal Pistol Optic features a 1.4-inch 360 × 300 display, a 26 × 20 mm viewing window, and multiple color palettes including White Hot, Black Hot, Red Hot, and Rainbow, allowing shooters to customize the display for different lighting conditions and target environments. A 60Hz refresh rate ensures smooth image transitions while tracking moving targets.
Built to withstand demanding field conditions, the optic features an IP67 waterproof rating, resistance to recoil up to 1200 g/s², and reliable operation in temperatures ranging from -4°F to 122°F (-20°C to 50°C). The compact housing weighs 4 ounces or less, minimizing added weight to your handgun while maintaining excellent balance.
Powered by a single CR2 battery, the INFITAC FMP13 FDE Thermal Pistol Optic FMP13_FDE delivers dependable thermal performance in a durable, easy-to-use package. Whether you’re searching for a compact thermal sight for defensive carry, nighttime hunting, or tactical operations, this advanced pistol optic offers the reliability, speed, and thermal imaging performance serious shooters demand.
