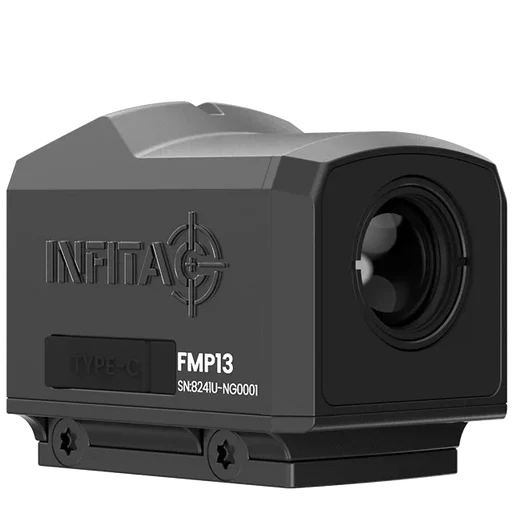

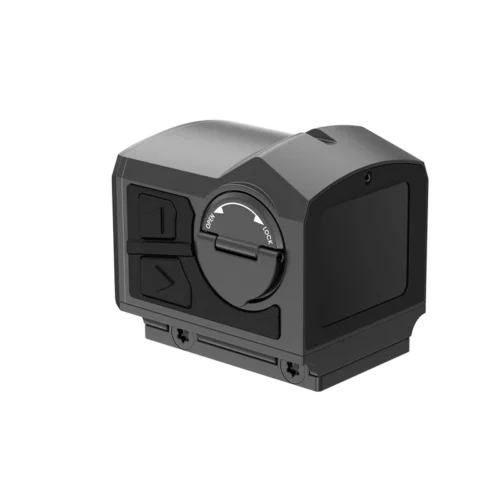

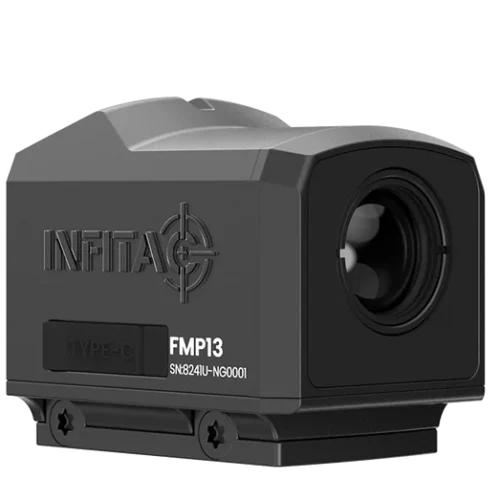

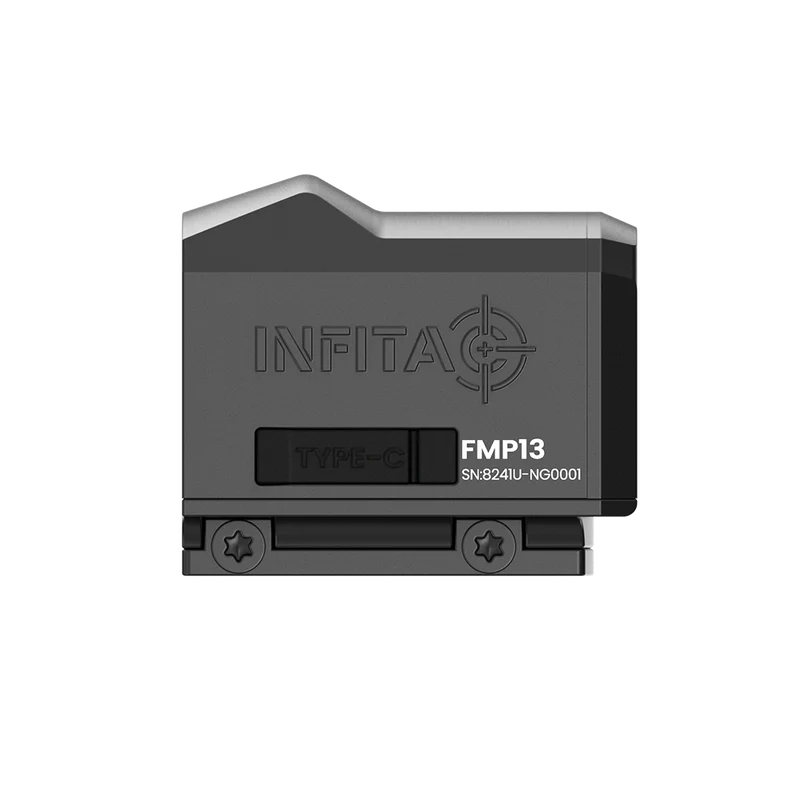

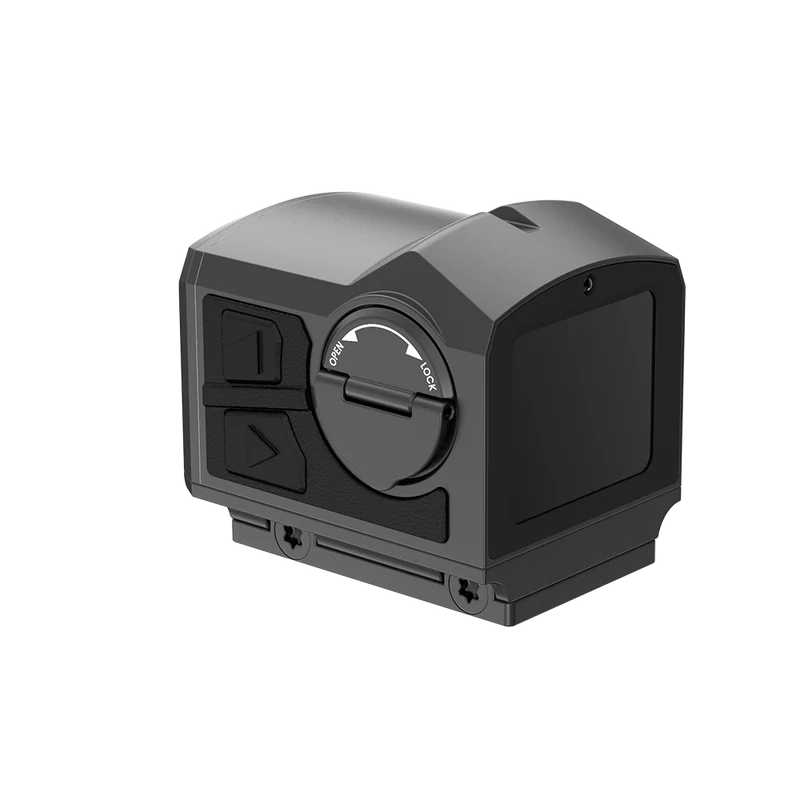

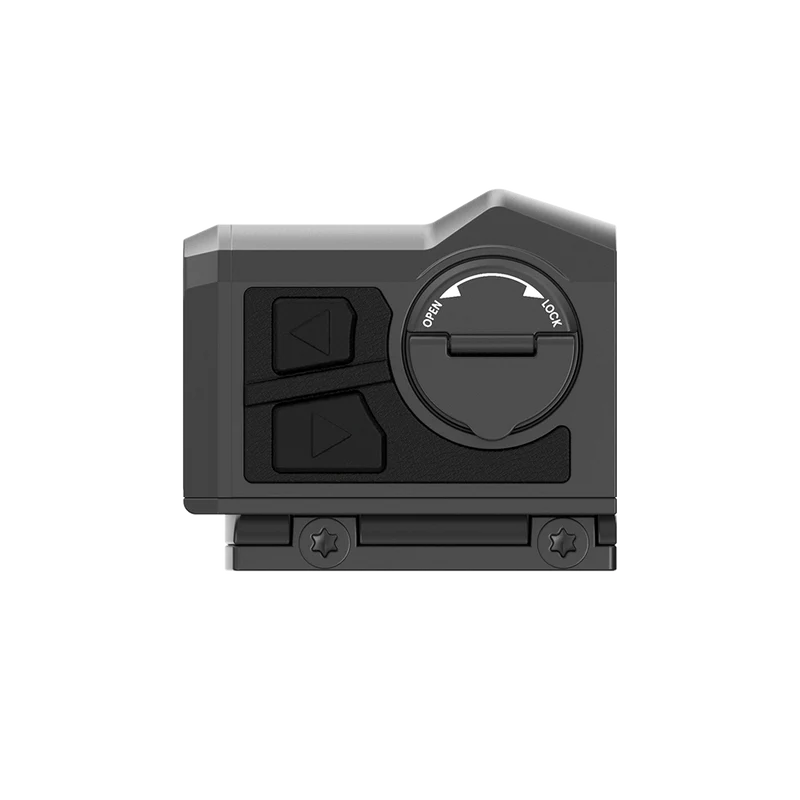

INFITAC FMP13 Thermal Pistol Optic FMP13_Black
The World’s First Multi-Function Thermal Pistol/Rifle Sight.
The INFITAC Fast Mini Series includes two compact thermal pistol sights—the FML19 and FMP13—featuring 384×288 and 256×192 resolution sensors, both operating at 60 Hz. Equipped with F1.2 (19 mm) and F1.0 (13 mm) lenses respectively, both models use a 1.4-inch 360×300 display.
Built for rugged use, the Fast Mini Series is IP67 waterproof, rated for up to 1200g recoil, and powered by a CR2 battery providing up to 5 hours of runtime, all in an ultra-compact and lightweight design.
Standard RMR footprint for your pistol mounting needs.
Complete your setup — optionally purchase FAST‑MINI accessories, including additional pistol footprints (RMSc, DPP, MOS) and rifle mounts (Picatinny rail, 30 mm ring, 45° offset, Aimpoint Acro).
INNOVATION & CAPABILITIES
- Thermal Tech
- InstaWake Tech
- Touch Screen (can also operate using buttons)
- Standard RMR footprint
- 60 Hz Overlay Refresh Rate
- Multi Reticle System: 6 MOA dot,6 MOA dot &65 MOA circle, 6 MOA dot & 130 MOA circle
- Auto Brightness
INFITAC Fast Mini Thermal Pistol Sights Comparison
| Category | INFITAC Fast Mini FMP13 | INFITAC Fast Mini FML19 |
|---|---|---|
| Sensor Resolution | 256 × 192 @ 12μm | 384 × 288 @ 12μm |
| Objective Lens | 13mm F1.0 | 19mm F1.2 |
| NETD (Thermal Sensitivity) | ≤25mK | ≤20mK |
| Battery Type | 1 × CR2 Battery | 1 × Rechargeable CR2 Battery |
| Field of View (H × V) | 13.5° × 10.1° | 13.8° × 10.3° |
| Detection Range | 740 yd (680 m) | 1,100 yd (1,000 m) |
| Recognition Range | 110 yd (100 m) | 165 yd (150 m) |
| Optical Magnification | 0.5x | 0.5x |
| Digital Zoom | 1x, 2x | 1x, 2x |
| Focus Range | 2 yd to ∞ | 2 yd to ∞ |
| Display Type | 1.4″ Display (360 × 300) | 1.4″ Display (360 × 300) |
| Viewing Window | 26 × 20 mm | 26 × 20 mm |
| Color Palettes | White Hot, Black Hot, Red Hot, Rainbow | White Hot, Black Hot, Red Hot, Rainbow |
| Refresh Rate | 60 Hz | 60 Hz |
| Water Resistance | IP67 (Submersible to 33 ft / 10 m) | IP67 (Submersible to 33 ft / 10 m) |
| Maximum Recoil Rating | 1200 g/s² | 1200 g/s² |
| Operating Temperature | -4°F to 122°F (-20°C to 50°C) | -4°F to 122°F (-20°C to 50°C) |
| Weight | ≤4 oz (113 g) | ≤4 oz (113 g) |
| Dimensions | ≤2.0 × 1.5 × 1.7 in (50 × 38 × 44 mm) | ≤2.0 × 1.5 × 1.7 in (50 × 38 × 44 mm) |
| Footprint | RMR Compatible | RMR Compatible |
| Adjustment Controls | Two-Button Control with Lockable Adjustment | Two-Button Control with Lockable Adjustment |
| Charging / Data Port | N/A | USB Type-C |
| Finish | Black | Black |
TECH FEATURES
Dual-Platform Optic
Touch Screen
InstaWake Tech
Multiple Reticle System
Auto Brightness
Thermal Tech
The INFITAC FMP13 Thermal Pistol Optic FMP13_Black is a compact thermal pistol sight designed to deliver exceptional target detection, rapid target acquisition, and dependable performance in complete darkness, smoke, fog, and other low-visibility environments. Built for professional users, hunters, and defensive shooters, the INFITAC FMP13 Thermal Pistol Optic combines advanced thermal imaging technology with a lightweight, durable design that integrates seamlessly with modern optics-ready handguns.
At the heart of the FMP13_Black is a high-performance 256 × 192, 12μm thermal sensor featuring an impressive ≤25mK NETD for outstanding thermal sensitivity. Paired with a 13mm F1.0 objective lens, the optic provides clear thermal imaging with a detection range of up to 740 yards (680 meters) and a recognition range of 110 yards (100 meters). Whether identifying heat signatures at night or locating targets obscured by foliage, smoke, or darkness, the FMP13 delivers reliable performance when conventional optics cannot.
The optic features a bright 1.4-inch 360 × 300 display with a generous 26 × 20 mm viewing window, providing a clear and intuitive sight picture. Users can select from multiple thermal color palettes, including White Hot, Black Hot, Red Hot, and Rainbow, allowing the display to be optimized for varying environments and mission requirements. A smooth 60Hz refresh rate ensures fluid image rendering and excellent target tracking during movement.
Constructed for harsh operating conditions, the INFITAC FMP13 Thermal Pistol Optic FMP13_Black is rated IP67 waterproof, withstands recoil forces up to 1200 g/s², and operates in temperatures ranging from -4°F to 122°F (-20°C to 50°C). Its compact footprint, weighing 4 ounces or less, helps preserve the balance and handling characteristics of your handgun.
Powered by a single CR2 battery, the INFITAC FMP13 Thermal Pistol Optic FMP13_Black offers dependable thermal performance in a rugged package. Whether you’re upgrading a duty pistol, building a nighttime hunting setup, or enhancing your personal defense firearm, the FMP13 provides cutting-edge thermal imaging technology, durable construction, and reliable performance for the most demanding shooting applications.
