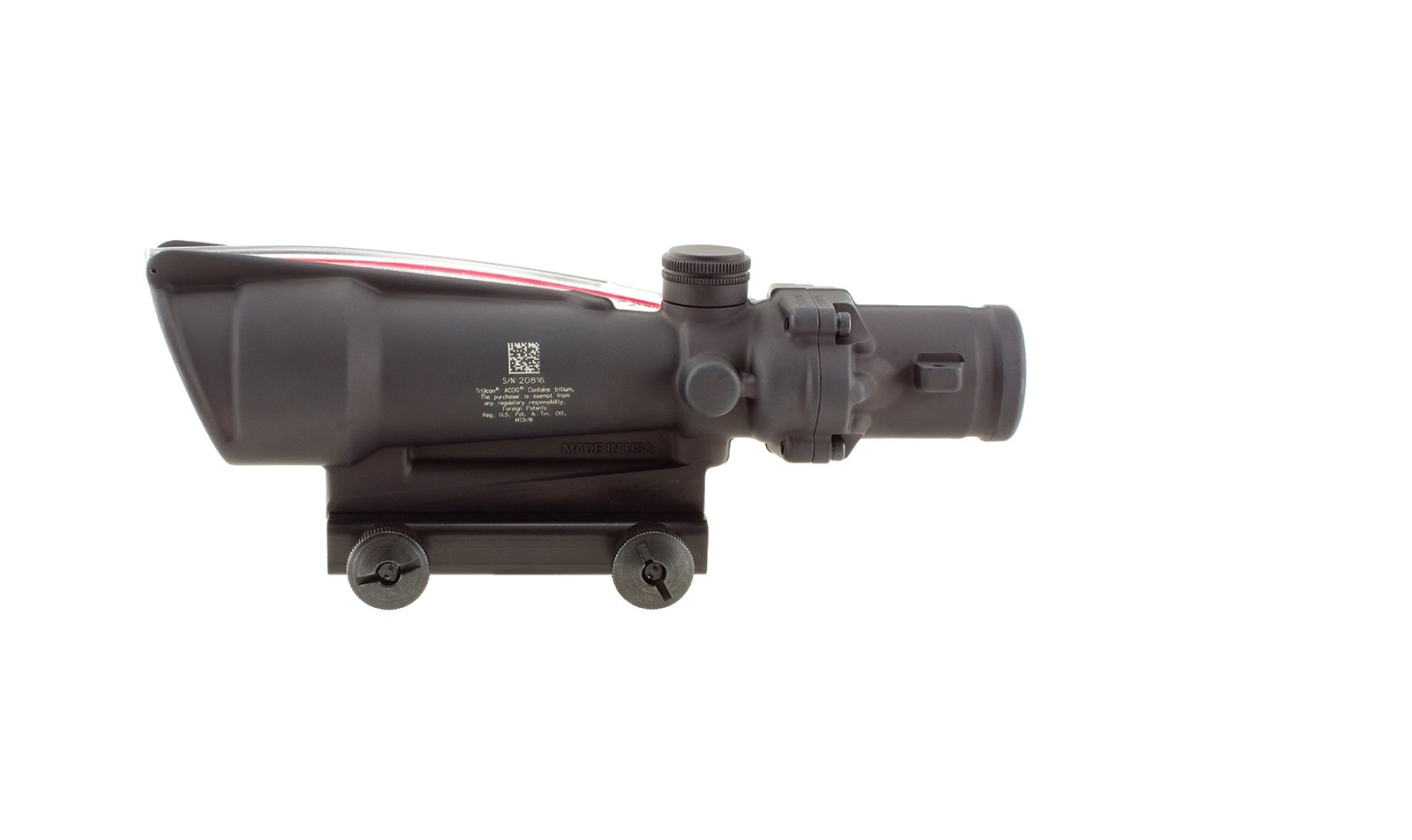

Trijicon ACOG Dual Illuminated Scope 3.5X35 Red Chevron Reticle .223 BDC TA11F

*Trijicon ACOG Dual Illuminated Scope 3.5X35 Red Chevron Reticle .223 BDC TA11F

Trijicon TA11F ACOG 3.5×35 Scope w/ Chevron BAC Reticle KIT2 is a highly effective medium range weapon sight that comes with all the tools you need to successfully attach it to a weapon for stellar firearm accuracy. This rifle scope pack includes the Trijicon TA51 Flat Top Adapter. The ranging reticle of these Trijicon rifle scopes is calibrated for 5.56mm (.223 cal) flat-top rifles out to 800 meters. The chevron BAC reticle of these rifle scopes is designed to be zeroed using the tip at 100 meters. The width of the chevron at the base is 5.53 MOA, which is 19" at 300 meters. This allows range estimation for silhouette targets. Trijicon TA11F 3.5x35mm ACOG .223 BAC Rifle Scope hits fast in any light. Trijicon has built these scopes to be internally-adjustable, compact telescopic sights with tritium illuminated, dual illuminated .223 chevron BAC reticles for use in low light or at night. Designed for use with the M16 family, every feature of its mechanical and optical design was chosen for a single purpose: to provide increased hit potential in all lighting conditions, without failure-prone batteries. For a highly accurate ACOG scope with a custom red chevron BAC reticle, choose the Trijicon T-A11F 3.5x35mm ACOG .223 Chevron Rifle Scope.image

Trijicon ACOG Gunsight Info
Specifications for Trijicon 3.5x35mm ACOG Sight w/ Mount:
Magnification: 3.5x
Objective Lens: 35mm
Length: 8"
Weight: 14 oz (without mount)
Illumination: Fiber optics and tritium

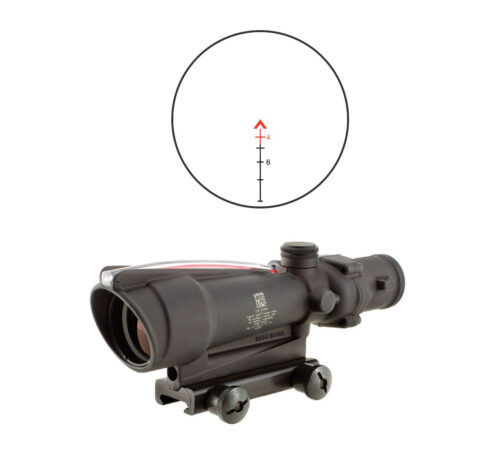

Reticle: .223 BAC Chevron
Calibration: .223
Reticle Color: Red
Eye Relief: 2.39"
Exit Pupil: 10mm
Field of View Angle: 5°
Field of View: 28.9' at 100 yards
Adjustment Rate: 3 clicks/in
Material: Forged aluminum
Features of Trijicon 3.5×35 ACOG Sight w/ Red Chevron BAC .223 Flat-Top Reticle and TA51 Mount

Forged 7075-T6 aircraft aluminum alloy housing provides for a nearly indestructible sighting system
Trijicon ACOG models equipped with BAC (Binding Aiming Concept) allow use of the both-eyes-open aiming method along with scope magnification sighting for rapid target acquisition in any light
Maximum eye-relief for larger caliber rifles and large exit pupil for faster target acquisition
Rugged internally adjustable system
Trijicon fiber optics automatically adjusts the brightest level and contrast of the reticle to available light conditions
Tritium phosphor lamp makes aiming reticle glow in low-light conditions for quick target acquisition. Lamp is guaranteed to illuminate up to 15 years.
ACOG delivers increased hit potential in all lighting conditions, without the use of failure-prone batteries
Broad band anti-reflective coated lenses provide superior clarity and light gathering capabilities with zero distortion
Lifetime Warranty
Package Contents:
Trijicon TA11F ACOG 3.5×35 Scope w/ Chevron BAC Reticle KIT2
1x TA-51 Flattop Adapter Mount
1x TA-63 3.5×35 Scope Coat
1x TA-56 Lens Pen
1x Trijicon logo sticker
1x ACOG BAC manual
1x warranty card
